Fire-rated UV resistant facade membrane – Ampatop RF Black
Ampatop RF Black fire rated facade membrane is:-
- a class B fire rated breathable membrane (s1,d0) for use with open and closed cladding or on roofs.
- UV resistant for over 10 years sunlight penetrating through the gaps.
- suitable for use with gaps up to 50mm wide and open areas up to 40% of the total facade area.
- a thick but breathable membrane, suitable for use over our wood fibre insulation systems.
Prices: from £269.09 + VAT per 50 x 1.5m roll
Fire-rated UV resistant facade membrane – Ampatop RF Black
Ampatop RF Black fire rated facade membrane is:-
- a class B fire rated breathable membrane (s1,d0) for use with open and closed cladding or on roofs.
- UV resistant for over 10 years sunlight penetrating through the gaps.
- suitable for use with gaps up to 50mm wide and open areas up to 40% of the total facade area.
- a thick but breathable membrane, suitable for use over our wood fibre insulation systems.
Prices: from £269.09 + VAT per 50 x 1.5m roll
Close-ups.
Take a closer look at this product with these additional images.

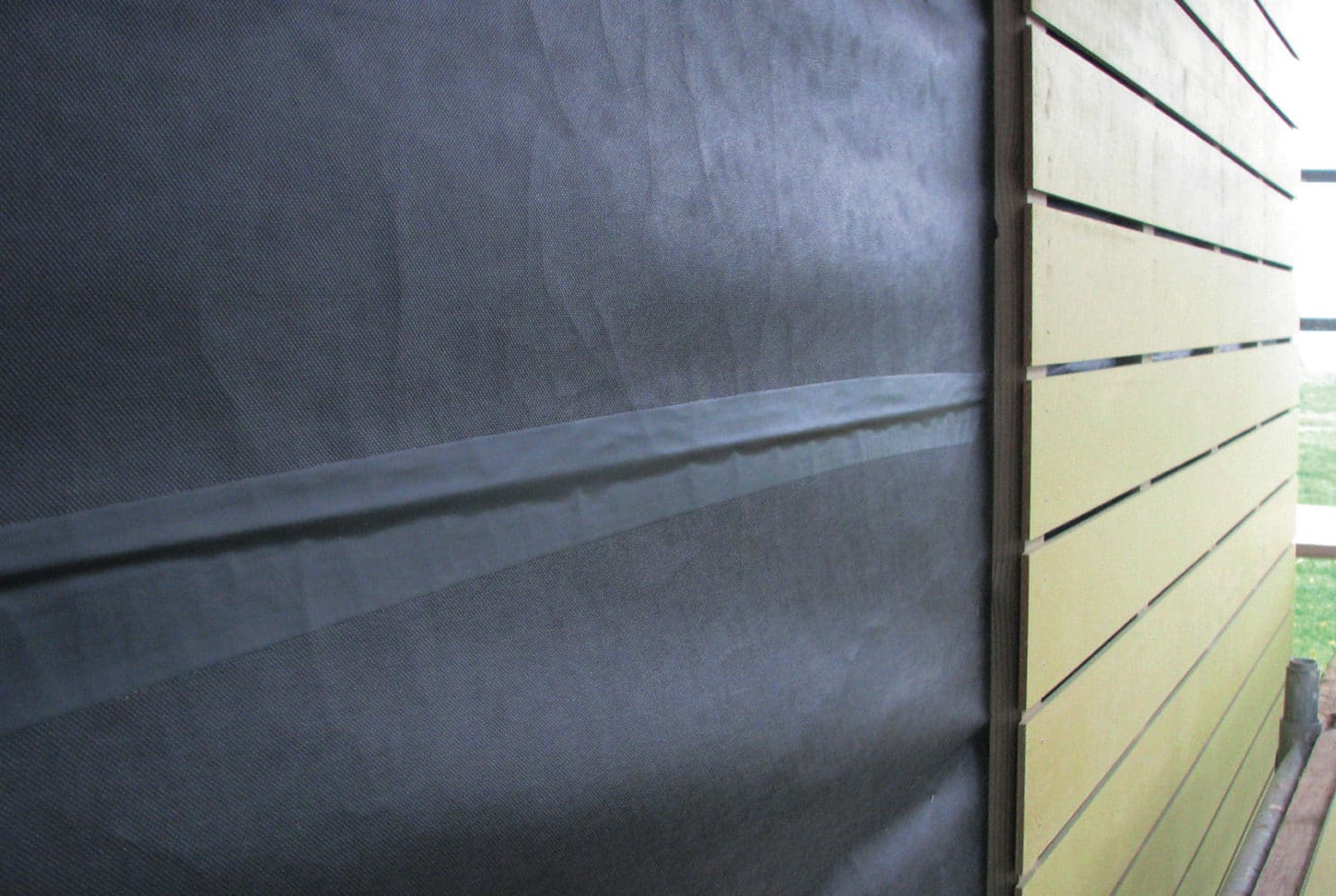

Image description: This shows a close up of the surface of the membrane behind some wooden cladding. The tape you can see here is the Ampacoll F Colour transparent UV resistant tape.

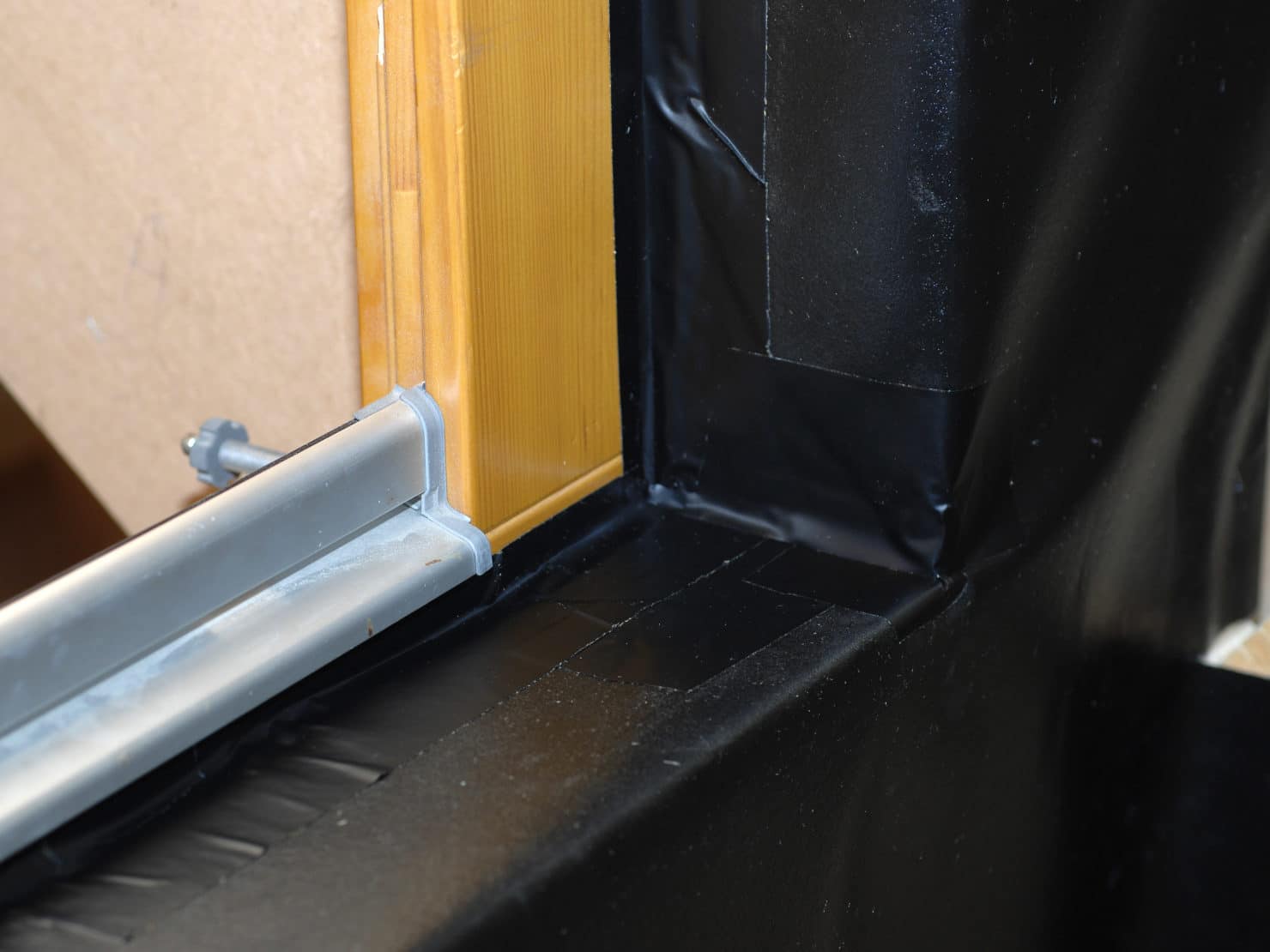

Image description: This is a close-up of the corner of a window opening where the Ampatop B Black has been turned in around the reveal. This reveal is taped with Ampacoll UV, a completely black, unbranded tape so no writing is visible between the gaps in the facade.
“A really heavy duty, robust membrane for ensuring breathability whilst limiting flame spread, without the concern of UV damage to the fabric beneath” – Chris Brookman
Product overview.
Where is it used?
- Ampatop RF Black can be used on all vertical facades where no more than 40% of the surface between cladding strips or modules is open.
- It can be used on closed facades or on roof structures, over wood fibre insulation or directly on to timber studs/rafters.
How much will I need?
- Each roll of Ampatop RF Black is 50 x 1.5m, or 75m² per roll.
- Overlaps of 100mm are recommended which reduces the coverage of a roll to 70m²
Can I use it on a roof?
- Ampatop RF Black is suitable for fully tiled/slated roofs but not suitable for use on roofs with gaps between roof covering materials.
- For roofs down to a pitch of 5° use Ampatop Seal. This product is not designed to be exposed for more than 3 months though so make sure that the roof is covered by this time.
How is it used?
- Ampatop RF black should be laid onto the existing support structure, taut and without any folds, with the black side out- wards.
- It should be fastened with staples that must be invisible in the overlap area. It is advantageous to cover them with battens.
- Both the vertical and the horizontal overlaps should be 10cm wide and taped down with Ampacoll UV tape, so that it is windproof.
- Next the counter battens are laid, thus finally fixing the wind proofing to the support structure.
- Visible staples that are exposed to the weather could lead to leaks, and as such should be avoided.
- We recommend fixings that are galvanised as a minimum, with stainless steel being preferable.
- The counter battens are required to secure further work and prevent any possible weather effects (e. g. wind suction or pressure).
- Penetrations and connections should be bonded to make them windproof with Ampacoll UV tape.
- The connection width should, where possible, be at least 10 cm. If this is not possible, a mechanical fixing is advisable.
- In the case of windows and external doors, Ampatop RF black should be made windproof with Ampacoll UV tape on the frame and if necessary secured mechanically.
- We recommend that the façade cladding is installed as soon as possible. In any event, the cladding must be mounted within 6 months.
- The joint width may be up to 50 mm. The individual façade elements must be at least twice as wide.
- The percentage of openings must not exceed 40 %.
Technical Details
Product overview.
Where is it used?
- Ampatop RF Black can be used on all vertical facades where no more than 40% of the surface between cladding strips or modules is open.
How is it used?
- Ampatop RF black should be laid onto the existing support structure, taut and without any folds, with the black side out- wards.
- It should be fastened with staples that must be invisible in the overlap area. It is advantageous to cover them with battens.
- Both the vertical and the horizontal overlaps should be 10cm wide and taped down with Ampacoll UV tape, so that it is windproof.
- Next the counter battens are laid, thus finally fixing the wind proofing to the support structure.
- Visible staples that are exposed to the weather could lead to leaks, and as such should be avoided.
- We recommend fixings that are galvanised as a minimum, with stainless steel being preferable.
- The counter battens are required to secure further work and prevent any possible weather effects (e. g. wind suction or pressure).
- Penetrations and connections should be bonded to make them windproof with Ampacoll UV tape.
- The connection width should, where possible, be at least 10 cm. If this is not possible, a mechanical fixing is advisable.
- In the case of windows and external doors, Ampatop RF black should be made windproof with Ampacoll UV tape on the frame and if necessary secured mechanically.
- We recommend that the façade cladding is installed as soon as possible. In any event, the cladding must be mounted within 6 months.
- The joint width may be up to 50 mm. The individual façade elements must be at least twice as wide.
- The percentage of openings must not exceed 40 %.
How much will I need?
- Each roll of Ampatop RF Black is 50 x 1.5m, or 75m² per roll.
- Overlaps of 100mm are recommended which reduces the coverage of a roll to 70m²
Can I use it on a roof?
- Ampatop RF Black is suitable for fully tiled/slated roofs but not suitable for use on roofs with gaps between roof covering materials.
- For roofs down to a pitch of 5° use Ampatop Seal. This product is not designed to be exposed for more than 3 months though so make sure that the roof is covered by this time.
Material in action.

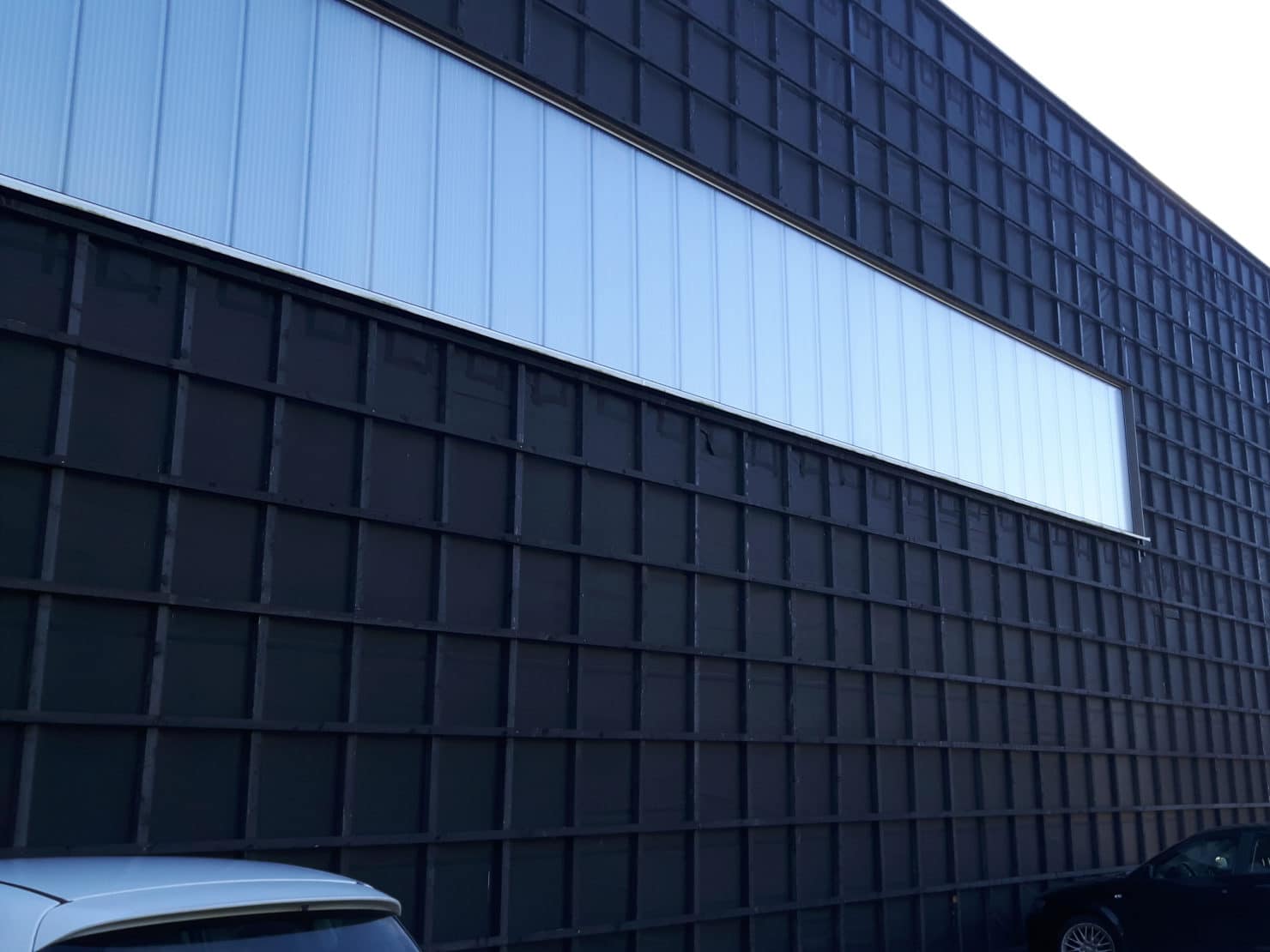

Here you can see the a facade with the Ampatop B Black applied to the outer surface and then black timber battens applied over this, ready to receive the final cladding materials.
Prices & Shipping
Here you will find pricing and shipping estimates. To get a fixed quote, please call our technical team on 01392 861763 or get in touch via the form below.
Ampatop RF Black membrane is priced as below with a 10% discount on orders of 3 rolls or more.
| Roll length [m] | Roll width [m] | Roll Area [m²] | Membrane weight [g/m²] | Roll weight [kg] | Sd value [m] | Single roll cost [£] | 3+ rolls [each] |
|---|---|---|---|---|---|---|---|
| 50 | 1.5 | 75 | 220 | 16.5 | 0.09 | £298.99 | £269.09 |
Carriage is typically calculated at £25 + VAT per roll. This price does vary if delivery is required to remote locations so please contact us for a more accurate price.
If this purchase is part of a larger order, please do not use these transport costs as the goods will grouped together for a much more competitive rate.
