From £15.78 + VAT per per 2m length

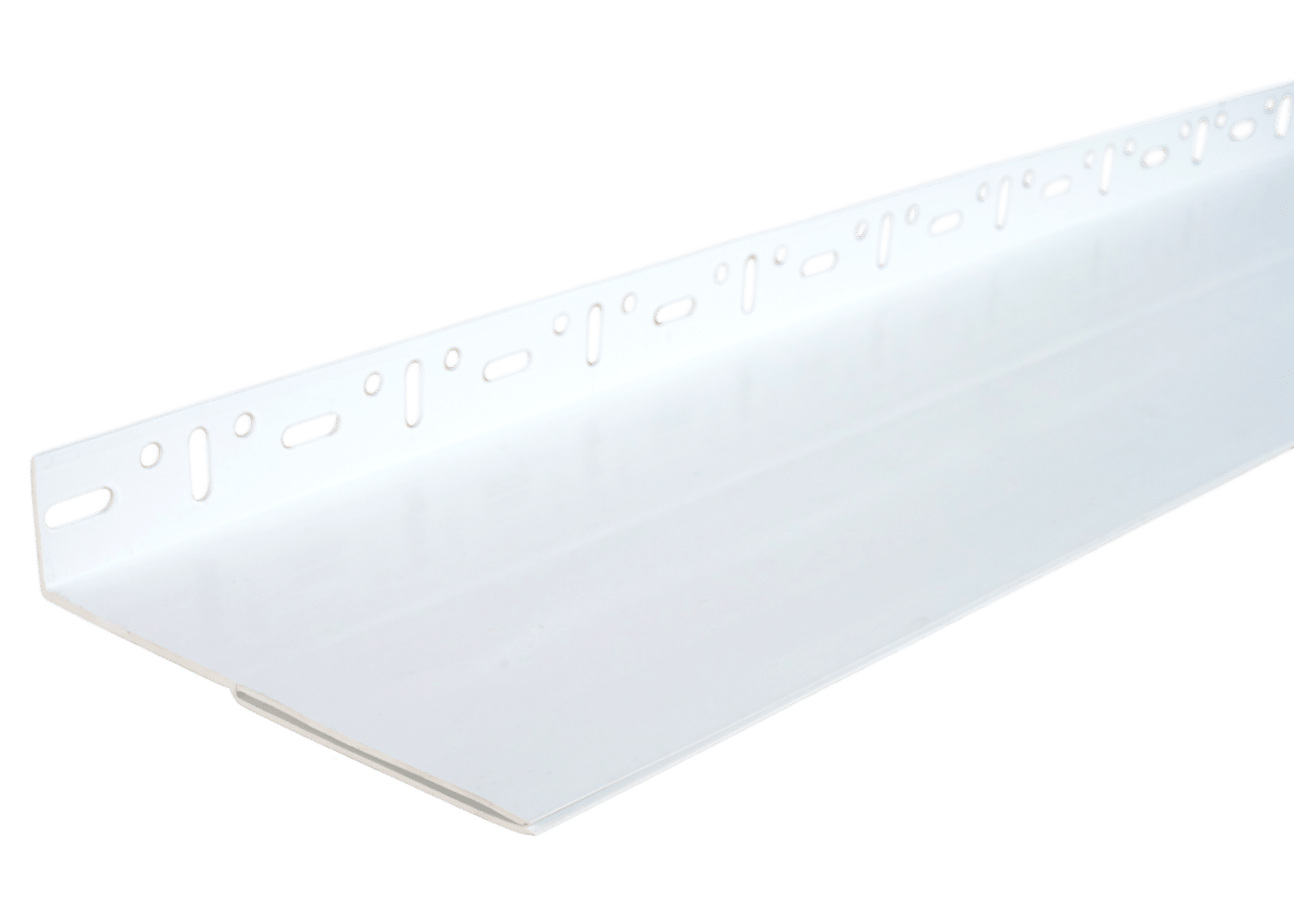

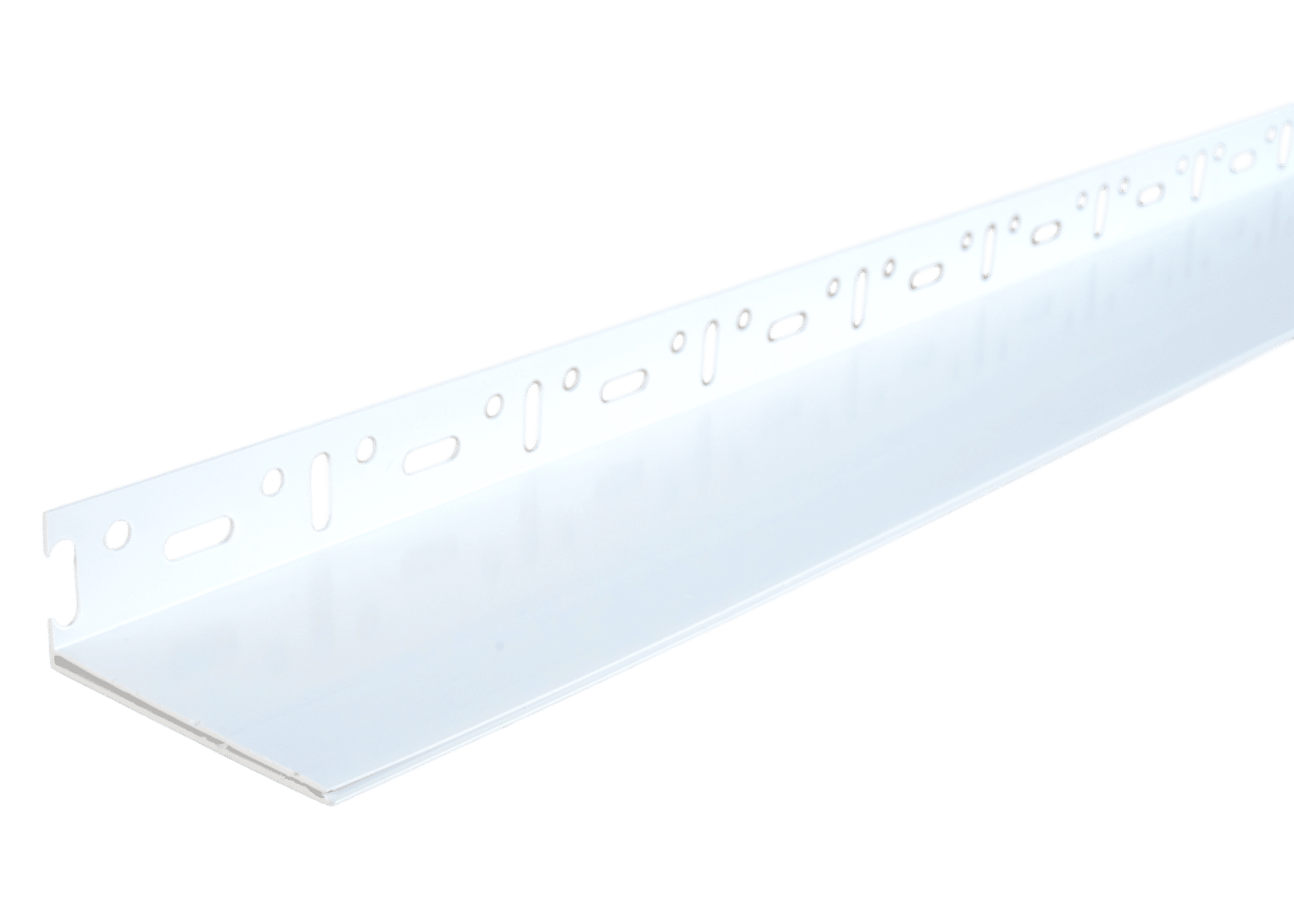

Variable plinth base track – UdiBASE 100 – 240mm
UdiBASE variable plinth base track profile is:-
- a PVC, thermally broken, plinth starter track for uneven surfaces where a fixed width system will not work.
- perfect for uneven walls using the UdiRECO insulation system.
Product overview
Where is it used?

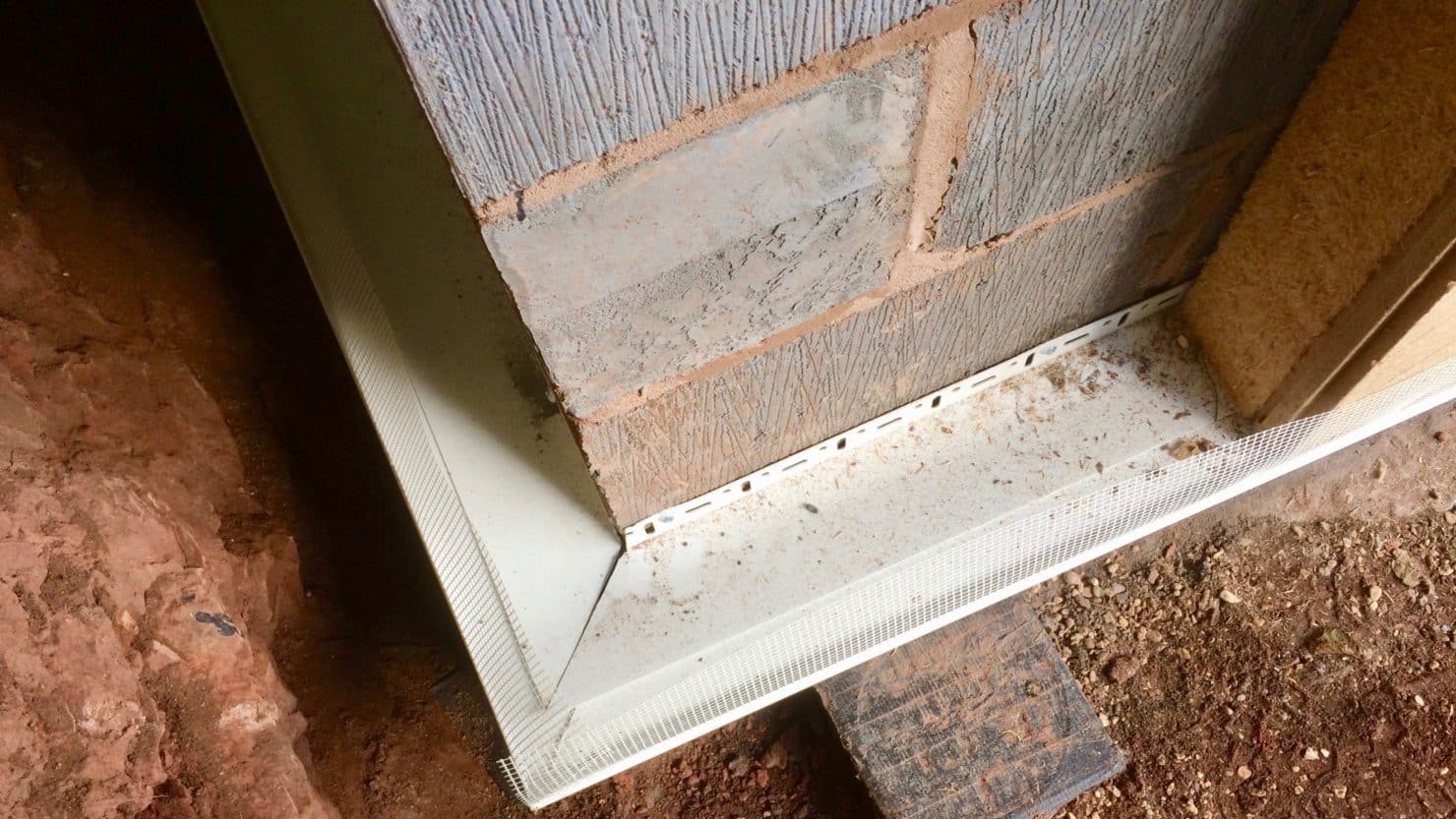

- UdiBASE variable plinth base track wall connection profile is mounted at the base of the wall before application of the insulation boards.
- It usually starts at a minimum of 150mm from the ground level.
How is it used?
- Start by setting up a level, using either a string line or a laser level.
- Fix the UdiBASE variable plinth base track wall connection profile to the wall with the appropriate masonry/timber fixings.
- Pack uneven surfaces with spacers to ensure the profile is straight.
- Mitre any corners.
- Ensure a 3mm gap between sections to allow for expansion. Gaps should be taped with Ampacoll XT tape to ensure weather tightness.
How much will you need?
- Each length of UdiBASE variable plinth base track wall connection profile is 2.0m long and the pieces can be joined end to end so simply measure the total running amount required.
- These tracks are available individually or in packs of 10 pcs.
Pricing & shipping
This product comes in long lengths and where it has to be sent individually (not on top of a pallet) it will be sent by courier, costing around £35 + VAT
| Profile | Width [mm] | For thicknesses between [mm] | Length of profile [m] | Single piece cost | Piece cost in packs of 10 | ||
|---|---|---|---|---|---|---|---|
| Wall mounted | £100.00 | 100 -180 | £2.00 | £10.50 | £9.45 | ||
| Wall mounted | £180.00 | 180 – 240 | £2.00 | £15.95 | £14.36 | ||
| Outer, to be inserted | 100 | 100 – 240 | 2 | £7.04 | £6.34 |
