Weldable breathable roofing membrane – Ampatop Seal – 1.5m x 30m

Ampatop Seal weldable breathable roofing membrane is:-

  • an extremely robust, double sided, heat or solvent weldable, breathable roofing membrane.
  • suitable for roof pitches down to 5°, enabling very low pitch slate or tile roofs.
  • a great way to enable breathable, flat roof constructions.
  • anti-slip and suitable for up to 3 months weather exposure.
  • guaranteed for 10 years.

Prices: £325.32 + VAT per 30m x 1.5m roll

Weldable breathable roofing membrane – Ampatop Seal – 1.5m x 30m

Ampatop Seal weldable breathable roofing membrane is:-

  • an extremely robust, double sided, heat or solvent weldable, breathable roofing membrane.
  • suitable for roof pitches down to 5°, enabling very low pitch slate or tile roofs.
  • a great way to enable breathable, flat roof constructions.
  • anti-slip and suitable for up to 3 months weather exposure.
  • guaranteed for 10 years.

Prices:  £325.32 + VAT per 30m x 1.5m roll

“A really robust and breathable membrane, great for laying over wood fibre sarking boards to create watertight, flat roof structures” – Chris Brookman

Product overview.

Where is it used?

  • Ampatop Seal is used on very shallow pitch roofs over wood fibre sarking boards, down to 5° pitch to ensure a fully watertight, breathable seal is formed.
  • This product can also be used down to a 10° pitch without any sarking board support.
How is it used?

  • Ampatop Seal weldable breathable membrane is designed to be used in very low pitch (flat) roof structures.
  • All joints should overlap by at least 100mm and all joints must be welded with Ampacoll LiquiSeal adhesive.
  • Roof pitches between 5° and 10° must use a sarking board to support the membrane and prevent pooling.
  • For full details on how to install this membrane please download the installation guide.
Technical Details
How much will you need?

  • Each roll of Ampatop Aero breathable membrane is 50m long and 1.5m wide. It covers an area of 70m2 including overlaps.

How long can I leave it exposed?

  • This membrane is very UV stable and can withstand up to 3 months of weathering without deterioration. Beyond this the sun can begin to degrade the strength and weather resistance of the membrane.

Do I need to tape the joints?

  • Yes, you should always tape the laps, usually with the Ampacoll XT tape. This ensures the wind-tightness of the exterior of the building and reduces heat loss from wind penetration.

Product overview.

Where is it used?

  • For use on the outside of timber frame walls, behind clad facades to ensure resistance to weather and insects.
  • For use on all types of pitched roof structure.

How is it used?

  • Ampatop Aero breathable membrane can be stapled to the topside of rafters or the outside of timber battens/studs.
  • All joints should overlap by at least 100mm and any vertical joints should be taped with Ampacoll XT breathable tape prior to counter battening or being over boarded/clad.
  • Use Ampacoll DT double sided tape to stick the membrane down to wood fibre or OSB surfaces prior to counter battening.
  • Any penetrations of rafters, vents, ducts or pipes should be sealed with Ampacoll BK 535 penetration sealing tape.

How much will you need?

  • Each roll of Ampatop Aero breathable membrane is 50m long and 1.5m wide. It covers an area of 70m2 including overlaps.

How long can I leave it exposed?

  • This membrane is very UV stable and can withstand up to 3 months of weathering without deterioration. Beyond this the sun can begin to degrade the strength and weather resistance of the membrane.

Do I need to tape the joints?

  • Yes, you should always tape the laps, usually with the Ampacoll XT tape. This ensures the wind-tightness of the exterior of the building and reduces heat loss from wind penetration.

Material in action.

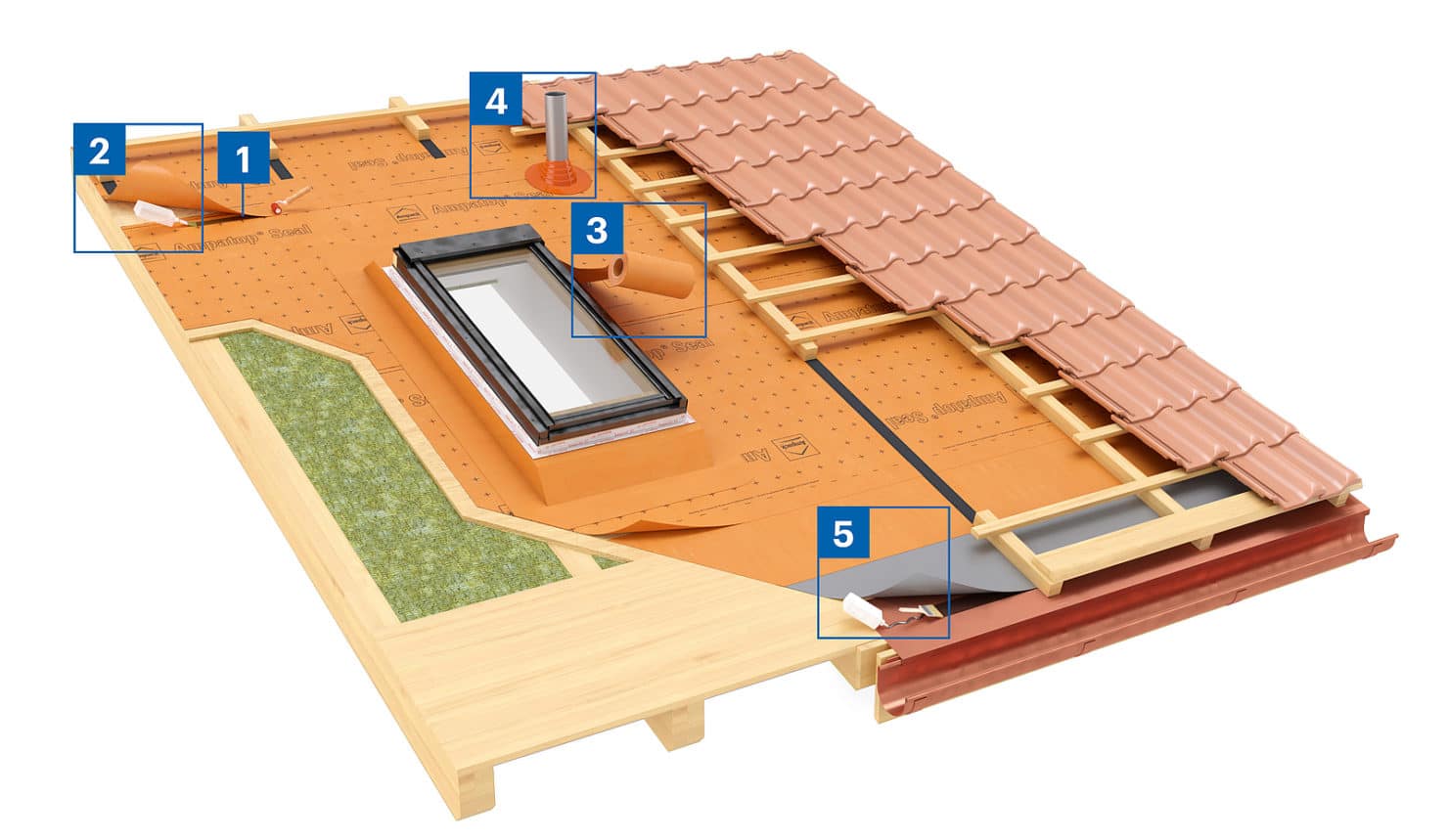

This image shows the Ampatop Seal membrane being used on a low pitch roof. Numbers 1 and 2 are the Ampacoll LiquiSeal and LiquiSeal Applicator, used for bonding the laps in the membrane. Number 3 is the Ampatop SealStripe which is a strip of the membrane used for forming around penetrations, such as roof lights. Number 4 is the Ampacoll TubeSeal which is a purpose made collar for sealing around any vent pipes or other protrusions and finally, number 5 is the Ampatop SealEdge eaves roll which is a UV resistant roll suitable for edging the membrane along the eaves. This ensures a permanently UV stable and watertight edge is formed.



Prices & Shipping

Here you will find pricing and shipping estimates. To get a fixed quote, please call our technical team on 01392 861763 or get in touch via the form below.



AmpatopAero breathable membrane is price as below with a 10% discount on orders of 5 rolls or more.

Roll length [m]Roll width [m]Roll Area [m²]Membrane weight [g/m²]Roll weight [kg]Sd value [m]Single roll cost [£]5+ rolls [each]
501.575145110.04£325.32£292.79

Carriage is typically calculated at £15 + VAT per roll. This price does vary if delivery is required to remote locations so please contact us for a more accurate price.
