Flashing profile – UdiREINFORCEMENT

UdiREINFORCEMENT flashing profile is:-

  • an easy to use, PVC profile for joining thin layer renders and metal flashings.
  • a simple way to create a junction over roof abutments, preventing thermal bridges and ensuring weather tightness.

Prices: from £12.01 + VAT

Flashing profile – UdiREINFORCEMENT

UdiREINFORCEMENT flashing profile is:-

  • an easy to use, PVC profile for joining thin layer renders and metal flashings.
  • a simple way to create a junction over roof abutments, preventing thermal bridges and ensuring weather tightness.

Prices: from £12.01 + VAT

Close-ups.

Take a closer look at this product with these additional images.

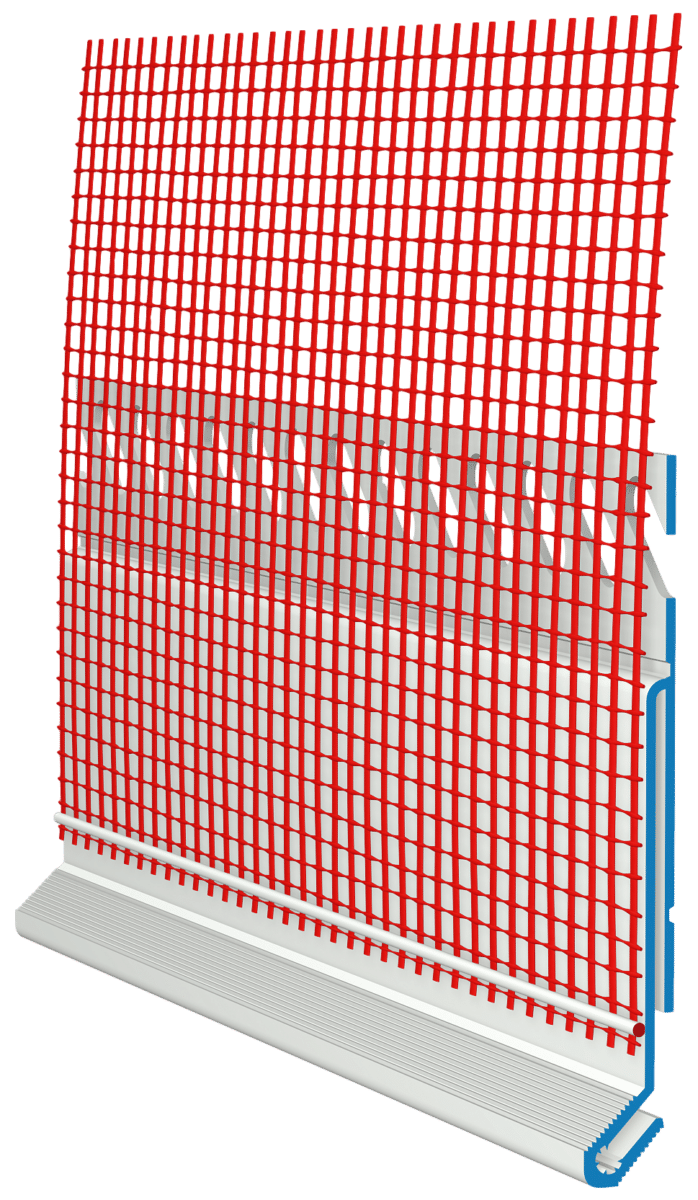

Image description: This image shows a close up of the bead allowing you to clearly see the slot up the back of the bead that takes the metal flashing.

Image description: This image shows a zinc flashing installed into the UdiREINFORCEMENT flashing profiles, creating a very neat detail.

“A really simple bead that gets rendered in and makes installing flashings super easy” – Chris Brookman



Product overview.

Where is it used?

  • UdiREINFORCEMENT flashing edge profile is used at junction of roofs and walls, such as porches, lean-to roofs or flat roofs.
  • The above picture shows the back of the profile and the slot into which the flashing sits.
  • The profiles can be used with any thin layer render system such as acrylic, silicate, silicone or polymer renders.

How is it used?

  • UdiREINFORCEMENT flashing edge profile should be installed prior to the main render and mesh.
  • Cut the beads to length and then adhere the bead to the substrate by applying a generous layer of render and seating the bead on it.
  • Stainless steel screws can also be used to hold the bead in place whilst the render sets.
  • Once in position the metal flashing can be inserted up into the slot at the back of the UdiREINFORCEMENT flashing edge profile and fixed in position.
  • The main render can then be applied and finished up to the drip edge on the profile.
Technical Details

How much will you need?

  • Each length of UdiREINFORCEMENT flashing edge profile is 2.0m long and the pieces can be joined end to end, so simply measure the total running amount required.

 Roof abutment detail – UdiREINFORCEMENT Flashing profile

Product overview.

Where is it used?

  • UdiREINFORCEMENT flashing edge profile is used at junction of roofs and walls, such as porches, lean-to roofs or flat roofs.
  • The above picture shows the back of the profile and the slot into which the flashing sits.
  • The profiles can be used with any thin layer render system such as acrylic, silicate, silicone or polymer renders.

How is it used?

  • UdiREINFORCEMENT flashing edge profile should be installed prior to the main render and mesh.
  • Cut the beads to length and then adhere the bead to the substrate by applying a generous layer of render and seating the bead on it.
  • Stainless steel screws can also be used to hold the bead in place whilst the render sets.
  • Once in position the metal flashing can be inserted up into the slot at the back of the UdiREINFORCEMENT flashing edge profile and fixed in position.
  • The main render can then be applied and finished up to the drip edge on the profile.

How much will you need?

  • Each length of UdiREINFORCEMENT flashing edge profile is 2.0m long and the pieces can be joined end to end, so simply measure the total running amount required.

 Roof abutment detail – UdiREINFORCEMENT Flashing profile

Material in action.

Here you can see the UdiREINFORCEMENT Flashing Profiles used to enable a lead flashing to be installed over a Cambrian slate roof. The profiles are rendered in to the surface of the wood fibre boards and allow the lead to be simply slotted up into them. This very neat detail is also extremely weather tight.

Prices & Shipping

Here you will find pricing and shipping estimates. To get a fixed quote, please call our technical team on 01392 861763 or get in touch via the form below.

The pricing of the UdiREINFORCEMENT flashing profiles are as follows. Prices do not include VAT or carriage:-

Length of profile [m] Single piece cost Piece cost in packs of 25
2 £13.34 £12.01

Carriage is typically calculated at £20 + VAT per box and all orders will be sent in a box. This price does vary if delivery is required to remote locations. We are also able to stack pallets in some cases. If you require only a few lengths we may be able to get slightly cheaper shipping so please contact us for a more accurate price.

If this purchase is part of a larger order, please do not use these transport costs as the goods will grouped together for a much more competitive rate.
