Plinth insulation – Styrodur 2800 C XPS

Styrodur XPS boards are:-

  • a waterproof, closed cell insulation board which is easy to use, cut and fix.
  • suitable for all plinth and below ground insulation areas.
  • textured to ensure high bond strength with plinth renders.
  • available in 40, 60, 80, 100 and 120mm thicknesses.

Prices: from £6.26 + VAT per board

Plinth insulation – Styrodur 2800 C XPS

Styrodur XPS boards are:-

  • a waterproof, closed cell insulation board which is easy to use, cut and fix.
  • suitable for all plinth and below ground insulation areas.
  • textured to ensure high bond strength with plinth renders.
  • available in 40, 60, 80, 100 and 120mm thicknesses.

Prices: from £6.26 + VAT per board

Close-ups.

Take a closer look at this product with these additional images.

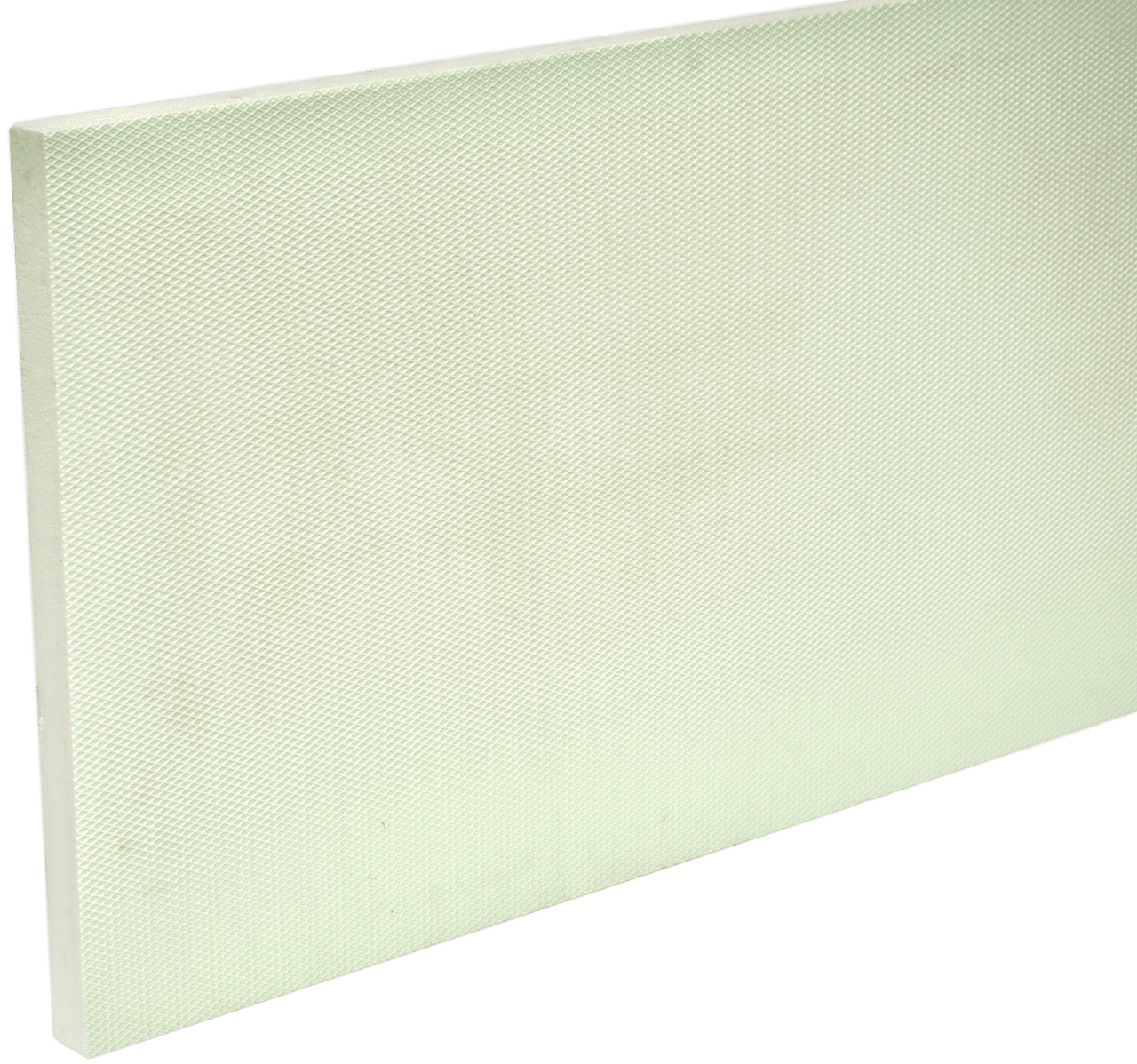

Image description: This shows the square edge profile and thickness of the Styrodur 2800C boards.

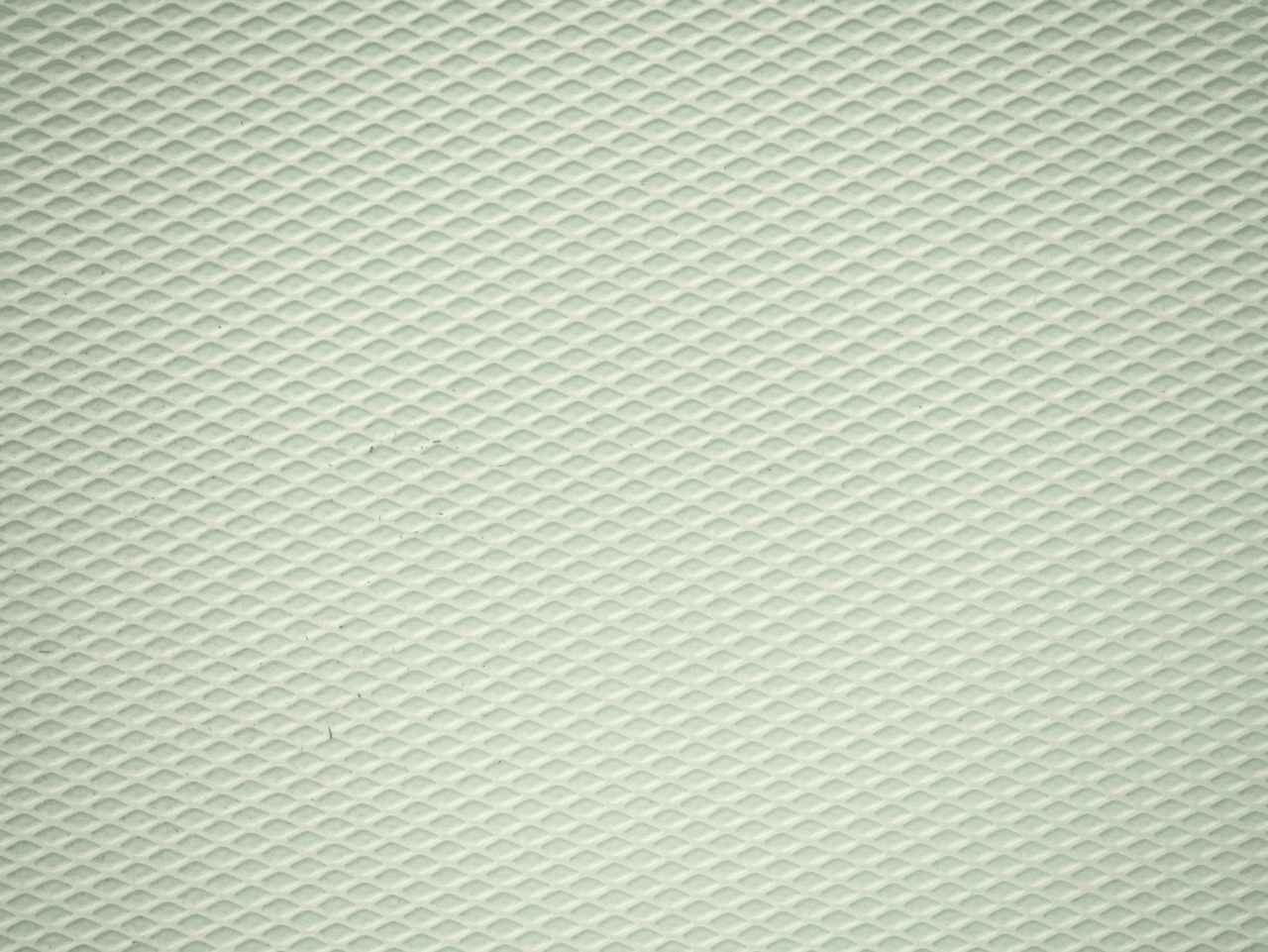

Image description: This is a close-up of the surface of the Styrodur 2800C board showing the texture which ensures high bond strength to all applied renders.

“The perfect material for the plinth area on any EWI project, even if it is to be submerged in water” – Chris Brookman



Product overview.

Where are they used?

  • At plinth level (300mm or less above ground level) and below on any External Wall Insulation project.
  • Around large stone window sills or other projections that are likely to give high levels of splash back.
  • Below ground on foundation walls or basement walls.

How much will you need?

  • The Styrodur boards are 1250 x 600mm and they cover an area of 0.75 m² per board. Allow around 5% for wastage, depending on the complexity of the area to be insulated.



How are they used?

  • Styrodur boards can be installed directly in to the aluminium plinth starter tray if being used on the base of a timber frame. Ensure the joint with the wood fibre boards is glued thoroughly to prevent cracking along this joint.
  • On masonry plinth, Styrodur 2800C should be at least adhesively fixed to the plinth by applying a 5mm layer of the appropriate contact mortar to the back of the board before pressing firmly against the clean masonry surface.
  • In plinth areas where impact is likely, masonry fixings such as UdiASSEMBLY masonry fixings, should be used in addition to the adhesive above.
Technical Details

What is their Thermal Conductivity

  • The exact conductivity varies across the different thicknesses of the boards but as a general guide it can be assumed to be 0.035 W/m2K. However, for more accurate information please see the data sheet.

Product overview.

Where are they used?

  • At plinth level (300mm or less above ground level) and below on any External Wall Insulation project.
  • Around large stone window sills or other projections that are likely to give high levels of splash back.
  • Below ground on foundation walls or basement walls.

How are they used?

  • Styrodur boards can be installed directly in to the aluminium plinth starter tray if being used on the base of a timber frame. Ensure the joint with the wood fibre boards is glued thoroughly to prevent cracking along this joint.
  • On masonry plinth, Styrodur 2800C should be at least adhesively fixed to the plinth by applying a 5mm layer of the appropriate contact mortar to the back of the board before pressing firmly against the clean masonry surface.
  • In plinth areas where impact is likely, masonry fixings such as UdiASSEMBLY masonry fixings, should be used in addition to the adhesive above.

How much will you need?

  • The Styrodur boards are 1250 x 600mm and they cover an area of 0.75 m² per board. Allow around 5% for wastage, depending on the complexity of the area to be insulated.

What is their thermal conductivity?

  • The exact conductivity varies across the thicknesses of the boards but as a general guide it can be assumed to be 0.035 W/m2K. However, for more accurate information please see the data sheet.

Prices & Shipping

Here you will find pricing and shipping estimates. To get a fixed quote, please call our technical team on 01392 861763 or get in touch via the form below.

The prices for the Styrodur 2800C XPS boards are as follows:-

Thickness [mm]Compressive Strength [kN/m2]Board dimensions [mm]Area of each board [sqm]Cost per board
403001250 x 6000.75£6.96
603001250 x 6000.75£10.38
803001250 x 6000.75£13.92
1003001250 x 6000.75£17.40
1203001250 x 6000.75£20.49

All prices are plus VAT. Carriage is typically calculated at £65 + VAT per pallet and all orders will be sent on a pallet. This price does vary if delivery is required to remote locations. If you require only a few boards we may be able to get slightly cheaper shipping so please contact us for a more accurate price.
