Baumit Expansion joint profiles

Baumit expansion joint profiles are:-

  • easy to use, PVC exterior expansion joint profiles with fibreglass mesh welded to it’s surface for strength
  • for providing a clean, weather tight expansion joint detail to insulation systems.
  • for creating the required detailing for fire breaks across party walls in insulations systems.
  • for using with all thin layer renders from Unger-Diffutherm, Baumit, etc.

Prices: from £23.78 + VAT per length

Baumit Expansion joint profiles

Baumit expansion joint profiles are:-

  • easy to use, PVC exterior expansion joint profiles with fibreglass mesh welded to it’s surface for strength
  • for providing a clean, weather tight expansion joint detail to insulation systems.
  • for creating the required detailing for fire breaks across party walls in insulations systems.
  • for using with all thin layer renders from Unger-Diffutherm, Baumit, etc.

Prices: from £23.78 + VAT per length

Close-ups.

Take a closer look at this product with these additional images.

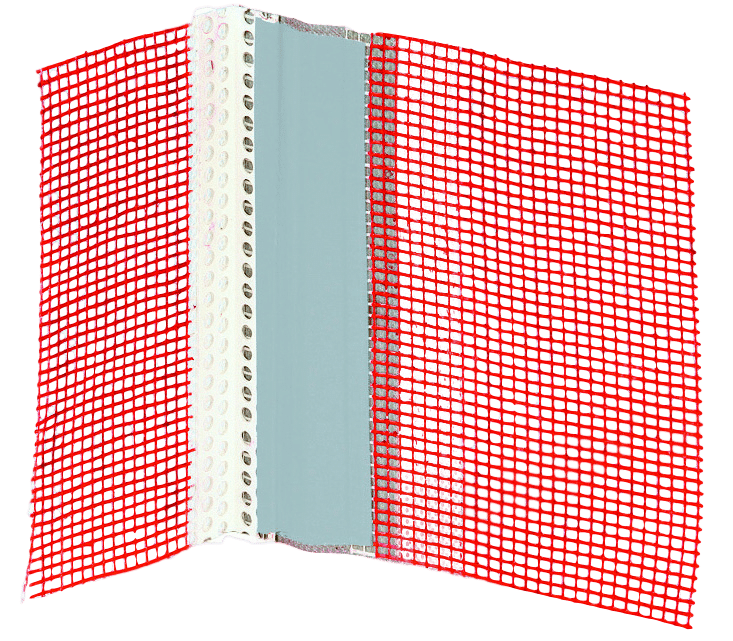

Image description: This shows the Baumit expansion V-profile, for internal corners

“A great product for new build and restoration projects alike as it combines traditional materials in a modern format”



Product overview.

Where are they used?

  • Expansion joint profiles provide a neat, weather tight expansion details or they can be used as part of a fire break and party wall detail.
  • They should be used with all of the wood fibre insulation systems where continuous facades of 18m or more are being constructed.
  • See the download here for more details

How are they used?

  • Expansion joint profiles should be installed prior to the main mesh.
  • There should be a continuous channel between the two facades of around 10mm to enable the insertion of the profile.
  • Install the profile and check that once in-situ a gap of at least 2mm will be maintained across the profile.
  • Remove the profile and apply a thin layer of render to the surface of the insulation boards.
  • Re-install the profile and trowel the mesh into the render and leave ready to apply the main mesh and render coat.
  • To maintain an even gap down the length of the profile, temporary spacers can be used such as strips of ply.
Technical Details

How much will you need?

  • Each length of expansion joint profile is 2.5m long. Pieces can be joined end to end, so just measure the total running length required.

 Baumit Expansion joint profiles – Standard details

 Baumit EWI Systems Installation Guide

Product overview.

Where are they used?

  • Expansion joint profiles provide a neat, weather tight expansion details or they can be used as part of a fire break and party wall detail.
  • They should be used with all of the wood fibre insulation systems where continuous facades of 18m or more are being constructed.
  • See the download here for more details

How are they used?

  • Expansion joint profiles should be installed prior to the main mesh.
  • There should be a continuous channel between the two facades of around 10mm to enable the insertion of the profile.
  • Install the profile and check that once in-situ a gap of at least 2mm will be maintained across the profile.
  • Remove the profile and apply a thin layer of render to the surface of the insulation boards.
  • Re-install the profile and trowel the mesh into the render and leave ready to apply the main mesh and render coat.
  • To maintain an even gap down the length of the profile, temporary spacers can be used such as strips of ply.

How much will you need?

  • Each length of expansion joint profile is 2.5m long. Pieces can be joined end to end, so just measure the total running length required.

 Baumit Expansion joint profiles – Standard details

Material in action.

We don’t have any images of this product in use right now, sorry.

Prices & Shipping

Here you will find pricing and shipping estimates. To get a fixed quote, please call our technical team on 01392 861763 or get in touch via the form below.

The pricing of the Baumit Expansion joint profiles are as follows. Prices do not include VAT or carriage:-

Expansion Profile Length of profile [m]Single piece costPiece cost in packs of 25
E2.5£23.78£21.40
V2.5£23.78£21.40

Carriage is typically calculated at £20 + VAT per box and all orders will be sent in a box. This price does vary if delivery is required to remote locations. If you require only a few lengths we may be able to get slightly cheaper shipping so please contact us for a more accurate price.

If this purchase is part of a larger order, please do not use these transport costs as the goods will grouped together for a much more competitive rate.
